Coil Wrapping Machine for Industrial Packaging: Technical Specification and ROI Analysis

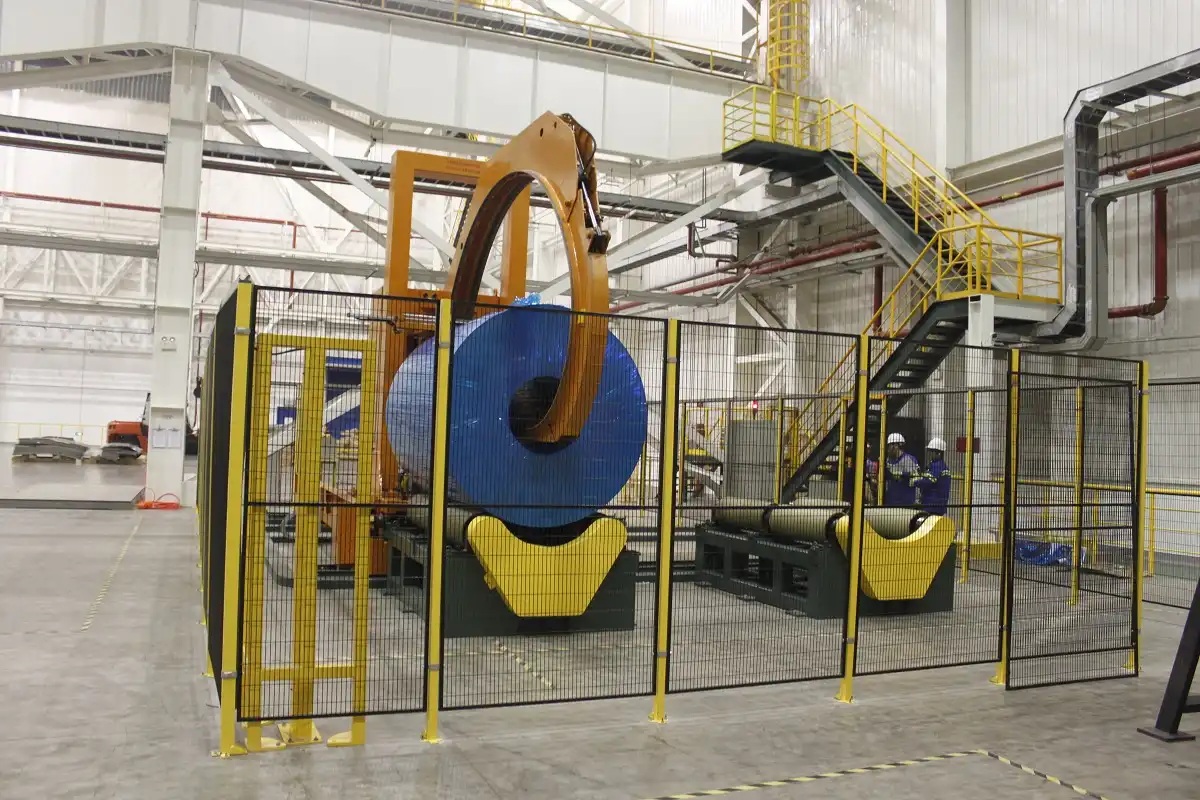

What is a Coil Wrapping Machine and How Does It Work?
A coil wrapping machine (also known as coil packing machine) is an automated packaging system that applies protective film layers around coiled products using orbital rotation or horizontal wrapping mechanisms. FHOPEPACK designs coil packing machine systems that process coils from 300mm to 2200mm outer diameter, weighing 50-3000 kg, with wrapping speeds of 15-35 cycles per minute and film pre-stretch ratios of 200-300%. Unlike manual packaging (requiring 12-20 minutes per coil with 2-3 operators), the coil wrapping machine completes full packaging in 2.5-5 minutes through automated film delivery, tension control (adjustable 20-150N), and programmable overlap patterns (40-60% coverage).

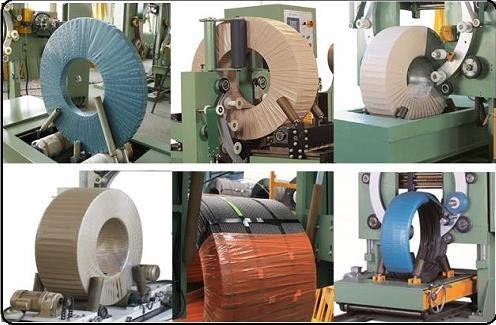

Application Industries for Coil Wrapping Machine Systems
Coil packing machine technology serves diverse sectors requiring protective packaging:
- Steel industry: Steel coil packaging (500-2200mm OD, weights to 3000 kg), steel wire coil protection (corrosion resistance for 6-12 month storage)
- Metal processing: Copper coil wrapping (electrical conductivity preservation), aluminum coil packaging (surface protection during transit)
- Plastic manufacturing: Plastic pipe & hose coil packaging (UV protection, moisture barrier), PE/PP coil wrapping (bundling 50-500m lengths)
- Automotive industry: Tyre packaging (stacking protection, warehouse storage optimization), bearing coil protection (rust prevention coating)
- Cable & wire production: Cable coil wrapping (multi-layer protection for 1000-5000m spools), wire coil packaging (diameter range 400-1600mm)
- Rubber products: Industrial hose coil packaging, conveyor belt coil protection (lengths 20-100m)
What Challenges Do Steel and Manufacturing Facilities Face?
Production facilities processing coiled products encounter four critical packaging constraints: manual wrapping operations consume 12-20 minutes per coil with 2-3 laborers, resulting in annual labor costs exceeding $120,000 for plants processing 100 coils daily. Film application inconsistency in manual operations creates 15-25% variation in overlap coverage, causing 6-10% product damage during transportation due to inadequate moisture and corrosion protection. Steel service centers report $85,000-125,000 annual losses from rust damage on improperly wrapped coils stored 3-6 months.
Operational Constraints in Manual Packaging
Traditional coil wrapping methods demonstrate:
- Manual wrapping time: 12-20 minutes per coil (labor-intensive for 500-2000 kg coils)
- Film consumption inefficiency: 30-45% material waste due to uncontrolled tension and improper overlap
- Labor requirements: 2-3 operators per packaging station
- Throughput limitation: 25-35 coils per 8-hour shift (manual methods)
- Quality inconsistency: Film tension variation ±35%, overlap coverage 40-80% (target 50-60%)
- Safety risks: Lifting injuries, pinch points during manual film application (12-18 incidents per 100,000 coils)
Environmental Protection Requirements
Steel and metal processing industries require corrosion protection compliance: ISO 8501 standards mandate <5% exposed surface area after wrapping, VCI (Vapor Corrosion Inhibitor) film application for 12-month storage protection in humidity levels 60-85%. Manual wrapping achieves compliance rates of 65-75%, while automated coil wrapping machine systems deliver 95-98% compliance through consistent multi-layer application and programmable wrap patterns.
How is a Coil Wrapping Machine System Designed?
FHOPEPACK coil packing machine systems integrate five automated modules for protective wrapping:
- Coil conveyor system: Variable speed 2-12 m/min, load capacity 50-3000 kg, positioning accuracy ±10mm
- Wrapping ring mechanism: Orbital rotation 15-35 rpm, ring diameter 1400-2800mm, dual-motor drive for stability
- Film delivery system: Pre-stretch unit 200-300%, motorized tension control 20-150N, film width 250-500mm
- Top/bottom sealing unit: Automatic end covering, heat sealing option for weatherproof closure
- PLC control system: Recipe storage for 50+ product types, touchscreen HMI (10-inch display), production counter and reporting
Technical Specifications
| Parameter | Standard Model | Heavy-Duty Model |
|---|---|---|
| Coil outer diameter | 300-1600 mm | 800-2200 mm |
| Coil inner diameter | 300-762 mm | 400-850 mm |
| Coil width | 100-800 mm | 200-1200 mm |
| Maximum coil weight | 1000 kg | 3000 kg |
| Wrapping speed | 15-25 coils/hour | 20-35 coils/hour |
| Ring rotation speed | 15-25 rpm | 20-35 rpm |
| Film pre-stretch ratio | 200-250% | 250-300% |
| Power consumption | 7.5 kW | 12 kW |
| Compressed air | 0.6 MPa, 100 L/min | 0.8 MPa, 150 L/min |
| Control system | Siemens S7-1200 PLC | Siemens S7-1500 PLC |
How Does Coil Wrapping Machine Performance Compare to Manual Packaging?
| Metric | Manual Packaging | Coil Wrapping Machine | Improvement |
|---|---|---|---|
| Wrapping time per coil | 12-20 min | 2.5-5 min | -75-88% |
| Film consumption (kg/coil) | 2.8-4.2 | 1.6-2.4 | -43-62% |
| Labor requirement | 2-3 operators | 1 operator | -67-75% |
| Film overlap consistency | 40-80% (±35%) | 50-60% (±3%) | Standard deviation reduction |
| Packaging defect rate | 6-10% | 0.5-1.5% | -85-92% |
| Throughput (8h shift) | 25-35 coils | 120-280 coils | +340-800% |
| Corrosion protection compliance | 65-75% | 95-98% | +27-51% |
What is the ROI of Implementing a Coil Wrapping Machine?
Capital Investment Structure
Base equipment cost (FHOPEPACK): $28,000-42,000 FOB (configuration-dependent)
Shipping to destination: $2,800-4,200 (route-dependent)
Installation and commissioning: $3,500
Operator training (24 hours): $1,200
Total project cost: $35,500-51,100
Annual Operating Cost Reduction
Based on 250 working days, single-shift operation processing 100 coils/day (25,000 coils/year):
- Labor savings: 1.5 operators × $32,000/year = $48,000
- Material efficiency: 100 coils/day × 1.5 kg saved × $3.2/kg × 250 days = $120,000
- Damage reduction: 7% defect rate × 25,000 coils × $125 average loss = $218,750
- Productivity gains: 80 additional coils/day × $15 margin × 250 days = $300,000
Total annual benefit: $686,750
Simple payback period: 0.6-0.9 months (18-27 days)
3-year NPV (8% discount rate): $1,685,000-1,735,000
How Long Does Coil Wrapping Machine Installation Take?
| Phase | Duration | Technical Requirements |
|---|---|---|
| Pre-installation engineering review | 3-5 days | Floor loading 600 kg/m², clearance 3.2m height |
| Equipment fabrication | 18-30 days | Custom ring diameter if non-standard coils |
| International shipping | 25-48 days | Route-dependent (Asia-Europe 28-35d, Asia-Americas 32-48d) |
| Customs clearance | 2-5 days | HS code 8422.40 |
| On-site installation | 3-4 days | Overhead crane or forklift (2-ton capacity) |
| Conveyor system integration | 2 days | Interface with existing production line |
| Electrical connection | 1-2 days | 380-480V 3-phase, 20-35A breaker |
| System commissioning | 2 days | 50-coil trial run, film tension calibration |
| Operator training | 1-2 days | Operation, recipe programming, maintenance basics |
Total implementation: 57-100 days from PO to production
What Maintenance Does a Coil Wrapping Machine Require?
FHOPEPACK coil packing machine systems require scheduled maintenance to maintain 98%+ uptime:
- Preventive maintenance interval: Every 2,000 operating hours (approximately 3-5 months at 100 coils/day)
- Critical wear components: Film carriage rollers (replace every 10,000 cycles), rotating ring bearings (lubrication monthly, replacement every 15,000 hours), conveyor chain (tension check weekly, replacement every 8,000 hours)
- Film system service: Pre-stretch rollers cleaning (weekly), tension sensor calibration (quarterly), film cutting blade replacement (every 5,000 coils)
- Spare parts recommended stock value: $4,200-6,500 (12-month coverage for 2,000 operating hours/year)
- Service response time: 48-72 hours via FHOPEPACK regional service network across 40+ countries
Frequently Asked Questions About Coil Wrapping Machine Systems
Q: Can a coil wrapping machine handle different coil sizes without manual adjustment?
A: Yes. FHOPEPACK coil packing machine systems feature automatic size detection via photoelectric sensors and motorized conveyor height adjustment (300-2200mm range). PLC stores 50+ recipes with pre-configured parameters (rotation speed, film layers, overlap percentage) for different coil dimensions. Recipe selection via touchscreen takes 5-10 seconds. Optional barcode scanner integration ($2,200) enables automatic recipe loading based on production order data.
Q: How does a coil wrapping machine integrate with steel coil production lines?
A: FHOPEPACK designs support industrial communication protocols: Profinet, EtherNet/IP, Modbus TCP for MES/ERP integration. Digital I/O provides handshake signals (coil ready, wrapping in progress, cycle complete, material low alarm) with upstream slitting lines and downstream strapping equipment. Conveyor speed synchronization with production line (2-12 m/min) ensures continuous flow. Integration configuration requires 8-12 hours PLC programming.
Q: What film types are compatible with coil wrapping machine systems?
A: Coil wrapping machine systems accommodate LLDPE stretch film (15-50μm thickness), VCI anti-corrosion film (for steel/metal coils, 12-month protection), PE shrink film, paper-based wrapping materials, and woven fabric covers. Film core diameter: 76mm standard, 152mm optional. Film width range: 250-500mm depending on coil size. Multi-film configuration available for combined stretch + VCI application (additional $3,500-5,200).
Q: What are power and space requirements for installation?
A: Standard FHOPEPACK coil packing machine requires 380-480V 3-phase power, 50/60Hz (auto-sensing), 20-35A circuit breaker. Power consumption: 7.5kW (standard model) to 12kW (heavy-duty). Footprint: 3.5m (W) × 6m (L) × 3.2m (H) including infeed/outfeed conveyors and safety zone per ISO 13857. Floor loading: 600 kg/m² for concrete foundation. Compressed air: 0.6-0.8 MPa, consumption 100-150 L/min.
Q: Can the system apply waterproof packaging for outdoor storage?
A: Yes. FHOPEPACK offers weatherproof packaging configuration with heat-sealing top/bottom covers (additional $4,800-6,500). System applies stretch film body wrap + HDPE end caps + heat-sealed closure for IP65-equivalent protection. Suitable for 6-12 month outdoor storage in temperature range -20°C to +60°C. Optional desiccant bag insertion system ($2,800) for moisture-sensitive products like steel coil requiring <40% relative humidity.
Q: What safety features prevent operator injury during automated wrapping?
A: Multi-layer safety system includes: safety light curtains (4 positions, Category 3 PLd per ISO 13849), emergency stop buttons (6 locations, <0.5 second motor stop), rotating ring safety guards (polycarbonate with interlock switches), pinch point sensors at conveyor interfaces, and automatic power cutoff when access doors open. Complies with CE Machinery Directive 2006/42/EC, OSHA 1910.212, and ISO 11161 safety standards for integrated manufacturing systems.
What Technical Support is Available for Coil Wrapping Machine Systems?
FHOPEPACK global service infrastructure provides comprehensive support:
- Remote diagnostics: 24/7 VPN access to PLC system, real-time HMI monitoring, troubleshooting response within 4-6 hours, predictive maintenance alerts via IoT sensors
- Preventive maintenance programs: Quarterly on-site inspection available through authorized distributors in 40+ countries (North America, Europe, Asia-Pacific, Middle East, South America, Africa)
- Spare parts distribution: Regional warehouses with 48-96 hour delivery to major industrial zones, 98% parts availability rate, emergency 24-hour service for critical components
- Technical documentation: Multilingual operation manuals (English, Spanish, German, Chinese, Japanese, Portuguese, Russian, Turkish), electrical schematics, PLC program documentation, troubleshooting guides with video supplements
- Training programs: On-site operator training (2 days, up to 8 operators), maintenance technician certification (3 days including hands-on repair training), remote webinar sessions (monthly topics on optimization techniques), video library access for 36-month post-purchase period
How to Select the Right Coil Wrapping Machine Configuration
To receive detailed engineering package and quotation from FHOPEPACK:
- Provide coil specifications (outer diameter range, inner diameter, width, weight range)
- Daily throughput requirement (coils/shift, annual production volume)
- Product types (steel coil, copper coil, cable, tyre, plastic pipe - material affects film selection)
- Environmental conditions (indoor/outdoor installation, temperature range, humidity levels)
- Protection requirements (standard moisture barrier, VCI corrosion protection, UV resistance for outdoor storage)
- Integration needs (existing conveyor systems, production line speed, MES/ERP connectivity)
Contact: FHOPEPACK engineering team provides preliminary system configuration and budgetary pricing within 48 hours. CAD layout drawings, film consumption analysis, cycle time simulation, and facility integration planning available upon request.
Summary: Key Advantages of Coil Wrapping Machine Technology
A coil wrapping machine from FHOPEPACK delivers measurable operational improvements over manual packaging methods for steel coil, cable coil, tyre, and plastic pipe applications:
Performance gains: 340-800% throughput increase (from 25-35 to 120-280 coils per 8-hour shift), 75-88% cycle time reduction (from 12-20 minutes to 2.5-5 minutes per coil), 85-92% packaging defect rate reduction (from 6-10% to 0.5-1.5%)
Cost efficiency: ROI payback period of 0.6-0.9 months (18-27 days), $686,750 annual benefit through labor savings ($48,000), material efficiency ($120,000), damage reduction ($218,750), and productivity gains ($300,000). Total investment $35,500-51,100 including FHOPEPACK equipment, shipping, installation, and training
Technical capability: Handles coils 300-2200mm outer diameter, weights 50-3000 kg, widths to 1200mm, with programmable film pre-stretch 200-300%, tension control 20-150N, and overlap consistency ±3%
Operational reliability: 98%+ uptime with preventive maintenance every 2,000 hours, 48-96 hour spare parts delivery via FHOPEPACK network across 40+ countries
Implementation timeline: 57-100 days from purchase order to production, including international shipping (25-48 days), installation (3-4 days), integration (2 days), and training (1-2 days)
Quality compliance: Achieves 95-98% corrosion protection compliance per ISO 8501 standards (vs 65-75% manual methods), VCI film application for 12-month storage protection, weatherproof packaging options for outdoor storage
FHOPEPACK coil packing machine systems with 40-country service network ensure long-term performance through remote diagnostics, multilingual documentation, regional spare parts distribution, and comprehensive training programs for steel industry, metal processing, cable production, automotive, and plastic manufacturing applications globally.
Technical Data Package Download: Complete specification set includes electrical schematics, conveyor system drawings, film consumption calculations, floor loading requirements, safety compliance documentation (CE/OSHA/ISO), and ROI calculation templates for FHOPEPACK coil wrapping machine and coil packing machine systems configured for global industrial packaging applications.
