Hose Coil wrapping machinery FPH-500

The FPH-500 is a vertical hose coil winding and packaging machine, ideal for large rubber hose coils, hydraulic hoses, corrugated pipes, and similar products. It ensures efficient, safe, and high-quality packaging for streamlined transportation and handling.

Key Features:

Universal Compatibility: Handles various hose types without limitations.
Operational Flexibility: Offers manual or automatic modes, adjustable ring/roller speed, and customizable overlap rates.
Efficiency: Fast packaging time (25–45 seconds) with high precision.
Smart Functions: Stores up to 99 packaging dimensions with touchscreen controls.

Special Features

Efficient Wrapping Mechanism

Provides uniform and secure wrapping for coils of various sizes, ensuring optimal protection during storage and transportation.

Adjustable Tension Control

Allows precise adjustment of wrapping tension to accommodate different materials and prevent damage to coils.

High-Speed Operation

Processes multiple coils rapidly, increasing throughput and minimizing downtime in large-scale production environments.

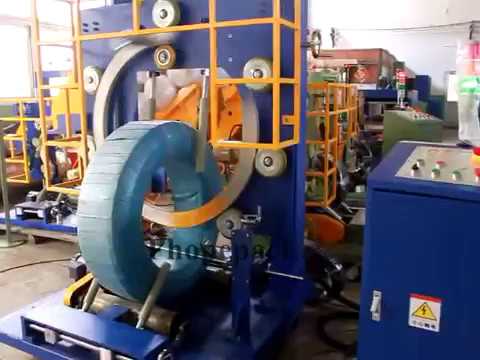

Related video

The FPH-500 Hose Coil Wrapping Machine provides streamlined wrapping for hose coils, ensuring consistent protection and stability. With advanced automation and easy operation, it minimizes manual effort while enhancing packaging efficiency. Built for durability, the FPH-500 is an optimal choice for industries prioritizing secure and effective hose packaging solutions.

FPH-500 Hose Winding Machine is primarily used for winding and packaging large-sized rubber hose coils, hydraulic hoses, corrugated pipes, and various other types of hose coils. This equipment is easy to operate, facilitating subsequent packaging and transportation. As a vertical hose coil winding packaging machine, the FPH-500 is designed to enhance packaging efficiency and safety.

Features

Versatile for various hose types: This equipment has no limitations on the type of product, making it adaptable to different types of hoses.
Automatic reset of the rotating ring: After completing the winding, the rotating ring automatically resets, simplifying the operational process.
Manual or automatic mode: Users can select between manual and automatic modes based on their needs.
Adjustable ring and roller speed: The speed of the ring and rollers can be adjusted to meet different winding requirements.
Adjustable material overlap rate: Ensures tight and secure packaging.
Storage of packaging dimensions: The machine can store dimensions for up to 99 different products on the touchscreen.
Safety features: Equipped with safety barriers, limit devices, and soft start/stop technology for the ring, ensuring safe operation.
Prevents material folding: Ensures high-quality packaging by preventing material from folding during the winding process.
Adjustable packaging tension: Ensures stability of the hose during the winding process.
Status indicators: Equipped with multicolored warning lights that automatically display the working status to alert operators.
Fast packaging speed: Packaging time ranges from 25 to 45 seconds, increasing production efficiency.
Adjustable friction force: The friction between the rotating ring and friction wheel is adjustable to accommodate different material winding needs.
Stable winding support: The support rollers effectively prevent material shaking, ensuring stable winding.
Maximum material width: The machine can handle materials with a maximum width of 500 mm.

Technical parameter
Model	FPH-500
Power supply	380v 50Hz 3Phase
Total power	About 2.5kw
OD	600-1400mm
ID	300-800mm
Width	100-500mm
Weight	20-200kg
Wrapping speed	25-40S/pc
Packing material	LLDPE/PE/PVC
Packing material size	ID 50mm；OD 80-100mm；Width70mm
Overlap rate	10%-90%
Max ring speed	10-80r/min
Roller speed	About 3-5m/min
