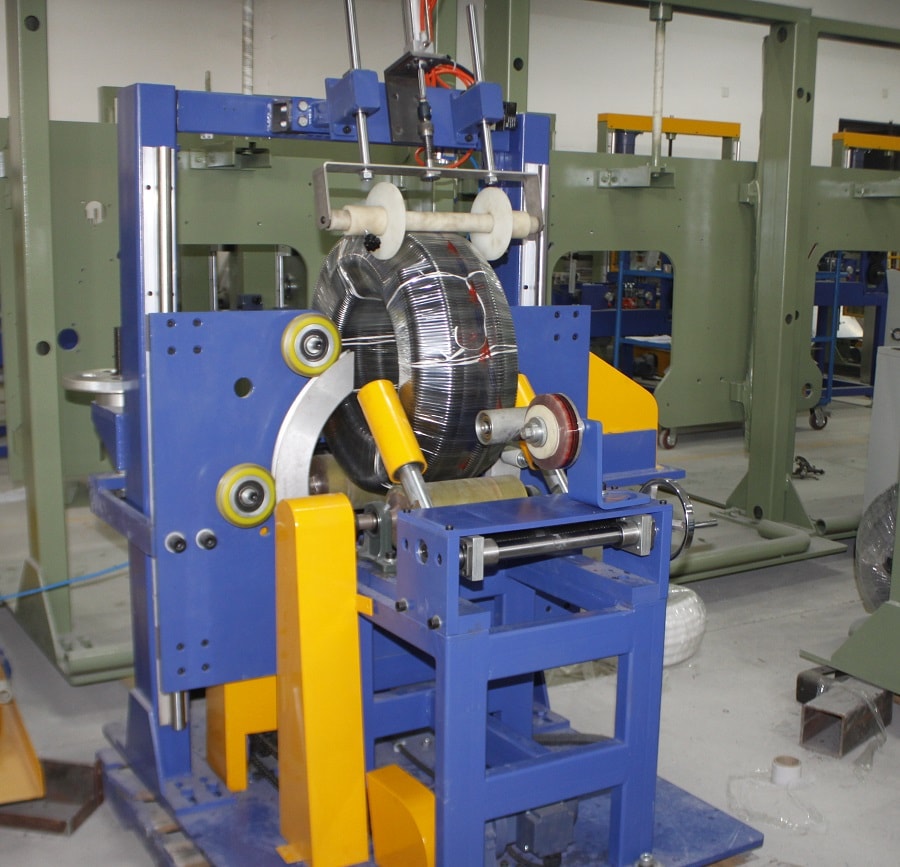

Hose wrap machine

This coil wrapping machine is designed to package objects weighing 2.0–50 kg with efficiency and precision. Compatible with various packaging materials, including stretch film, it accommodates package widths of 50–200 mm, outer diameters of 450–900 mm, and inner diameters of 300–600 mm.

Key Features:

Flexible Packaging Options: Works with a range of packing materials and adjustable overlap rates using an inverter.
Customizable Settings: Adjustable wrapping tension, roller supports, and ring speed for different object sizes and shapes.
Safety & Accuracy: Includes motor overload protection and reset positioning for added safety and precise operation.
Powerful Performance: Operates with a power output of 1.8 kW at 380V/50Hz, ensuring consistent performance.
User-Friendly Design: Adjustable speed for all moving rolls provides full control over the packaging process.

Special Features

Efficient Wrapping Mechanism

Provides uniform and secure wrapping for coils of various sizes, ensuring optimal protection during storage and transportation.

Adjustable Tension Control

Allows precise adjustment of wrapping tension to accommodate different materials and prevent damage to coils.

High-Speed Operation

Processes multiple coils rapidly, increasing throughput and minimizing downtime in large-scale production environments.

Related video

The hose wrap machine is an advanced packaging tool engineered for wrapping hoses with precision and speed. It provides consistent protection, reducing the risk of damage during handling and transportation. With user-friendly controls and customizable settings, it boosts efficiency, saves resources, and ensures high-quality packaging for industrial needs.

This machine is a coil wrapping machine that is designed for packaging objects with a weight of 2.0-50 kg. It can be used with various types of packing material, including stretch film, and it is capable of handling package widths of 50-200 mm, outer diameters of 450-900 mm, and inner diameters of 300-600 mm.

The machine is equipped with a number of features that allow the user to adjust and control the packaging process. For example, the inverter can be used to adjust the overlap of the packing material, and the packing tension can be adjusted as well. The supporting rollers can be adjusted for different object sizes, and the machine has a motor overload protection system and a reset positioning system for added safety and accuracy.

The wrapping ring speed and the speed of all the moving rolls can also be adjusted using inverters, providing flexibility and control over the packaging process. The machine is powered by an output of approximately 1.8 kW, and it operates at a voltage of 380V/50Hz. Overall, this machine is a versatile and reliable solution for packaging objects of various sizes and shapes.
