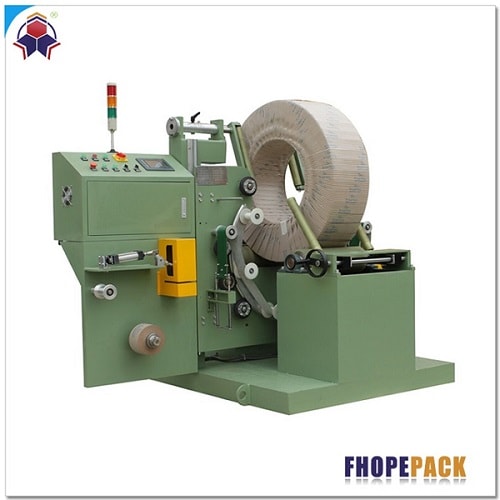

Steel coil wrapping machine FPS-400

The FHOPE FPS-400 is a classical, top-open coil packing machine, ideal for handling heavy steel coils with exceptional convenience. Its design enables effortless loading and unloading via crane, combining functionality with versatility. Tailored to meet specific customer requirements, the machine ensures efficient, safe, and customizable operations for varying coil sizes and packing needs.

Key Features:

Top-Open Design: Unique hoisting mechanism for heavy and large steel coils.
Customizable Specifications: Tailor-made to fit coil OD, ID, width, and thickness.
Versatile Packing Materials: Supports stretch film, crepe paper, woven belt, and more.
Adjustable Parameters: Wrapping speed, roller speed, and layer adjustments to meet dynamic needs.

Special Features

Efficient Wrapping Mechanism

Provides uniform and secure wrapping for coils of various sizes, ensuring optimal protection during storage and transportation.

Adjustable Tension Control

Allows precise adjustment of wrapping tension to accommodate different materials and prevent damage to coils.

High-Speed Operation

Processes multiple coils rapidly, increasing throughput and minimizing downtime in large-scale production environments.

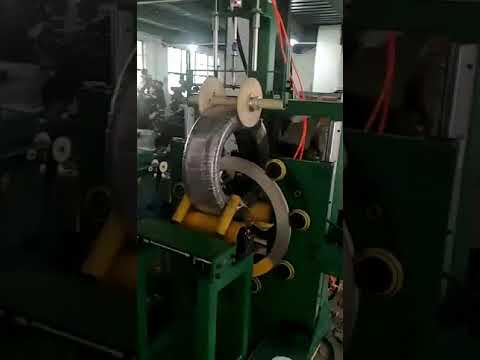

Related video

The FPS-400 steel coil wrapping machine is designed for efficient, secure, and high-speed packaging of steel coils. It enhances product protection during transportation and storage, reducing potential damage. With customizable settings, the FPS-400 adapts to various coil sizes, delivering consistent, reliable wraps ideal for industrial use.

FHOPE FPS-400, classical type of simplified coil packing machine, is good handling choice for steel coil handling solution. It’s unique for heavy coils, of its top-open-type design, very convenient for loading and unloading by crane. And it keeps the advantages of other common types of the machine, like various packing material’s choice of stretch film, crepe paper, woven belt...No matter which machine you choose, as long as it is our company's machine, it is tailor-made for your coil OD, coil ID, coil width/thickness and packing needs. Except for hard machine frame, the variable parts of wrapping speed, roller speed and wrapping layer could be adjuted as the change of customer’s needs and marketability.Standard machine is consist of C-ring, packing material releasing roller, supportive roller, carrier roller, base frame, etc. PLC control system is basic element for our machine’s electric cabinet. HMI is served for more automation packing needs.

1. Sepcial, unique top-open design by hoisting.
2. For heavy, large steel coil.
3. Machine designed based on customer’s product specification.
4. Electrical component of quality brand trustworthy.
5. Overlap adjustable
6. Speed adjustable
7. Safety sign
8. Control button in English
9. Separate cabinet
10. Easy start and operation

FHOPE specialized in packing heavy, large coils

Parameters

Parameter	Specification
FPS	400
Voltage (V/Hz)	380V 50Hz 3Phase
Power (KW)	4.0kw
Steel wire coil ID (mm)	508/610mm
Steel wire coil OD (mm)	800-1200mm
Steel wire coil width (mm)	100-400mm
Steel wire coil weight (Kg)	100-1000kg
Packing material	PVC / LLDPE / PE / PAPER / HDPE ID: 50mm, OD: 100-250mm, Width: 100-300mm
Overlapping rate	10%-90%
Air supply	5-7kgf/c㎡
