Hose film wrapper FPS-300H

The FPS-300H is designed for efficient packaging of lightweight and small hose coils, PVC pipe coils, and other piping materials. Its advanced features ensure product protection during storage, transportation, and sales.

Key Features:

Tension Control & Pressing Device: Provides secure and neat wrapping by maintaining optimal tension and preventing coil movement.
Convenient Operation: 850mm loading height allows easy manual loading/unloading.
High-Speed Wrapping: Capable of packaging 60-90 coils per hour with materials fixed on the ring for consistent wrapping.
Versatile Applications: Suitable for plastic pipes, rubber hoses, and annular objects like tires, cables, and metal belts.

Special Features

Efficient Wrapping Mechanism

Provides uniform and secure wrapping for coils of various sizes, ensuring optimal protection during storage and transportation.

Adjustable Tension Control

Allows precise adjustment of wrapping tension to accommodate different materials and prevent damage to coils.

High-Speed Operation

Processes multiple coils rapidly, increasing throughput and minimizing downtime in large-scale production environments.

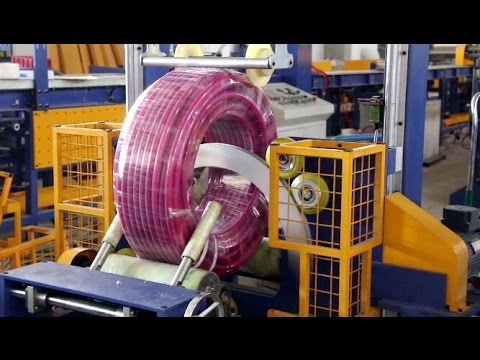

Related video

A hose film wrapper is an efficient packaging solution designed to wrap hoses tightly with protective film, safeguarding them from damage, moisture, and dirt. This machine enhances storage and transportation durability, minimizing wear and extending hose lifespan, making it essential for industries prioritizing hose quality and longevity.

FPS-300H Light Hose Coil Packaging Machine is equipped with a tension controller and a pressing device, enabling efficient packaging of lightweight and small hose coils, PVC pipe coils, and various other types of piping materials. It provides excellent protection for pipes during storage, transportation, and sales.

Product Introduction

The equipment rotates the hose using bottom rollers while performing through-the-core wrapping with 1-2 types of packaging materials.

Equipped with a tension controller and a pressing device, it facilitates the packaging of lightweight and small PE hose coils.

The machine's loading and operating height is 850mm, making manual loading and unloading convenient.

The top pressing device is used to secure the pipes during packaging, preventing the hose coil from moving and ensuring the packaging material is pressed correctly.

Packaging materials are fixed on the ring, enabling high-speed wrapping.

The packaging tension is adjustable, resulting in neatly wrapped pipes that are not easily deformed.

Packaging speed: Approximately 60-90 coils per hour.

The FPH Series Hose Wrapping Machine is specially researched, designed, and manufactured by Fhope Machinery for industries such as rubber pipes and metallurgy.

Its wrapping range is extensive, making it suitable not only for plastic pipes and rubber hoses but also for the external packaging of annular objects such as tires, cables, steel belts, copper belts, aluminum belts, and steel wires.

Technical parameter
Model	FPS-300H
Power supply	380v 50Hz 3Phase
Total power	about 1.2kw
OD	400-800mm
ID	＞300mm
Width	100-300mm
Weight	10-50kg
Packing speed	20-35S/个
Packing material	PVC/LLDPE/PE/PAPER/HDPE
Packing material size	ID 50mm；OD 100-160mm；Width 90mm
Overlap rate	10%-90%
Max ring speed	About 100r/min
Roller speed	About 3-5m/min
