Tyre Packing Machine FPT-100

The tyre wrapping machine is specifically designed to streamline the packaging of car and motorcycle tyres, ensuring efficient and reliable operations. Its advanced features and customizable settings make it ideal for handling diverse tyre sizes and shapes.

Key Features:

Top-Side Loading Design: Simplifies the loading process, especially for smaller tyre sizes.
Tailored for Tyre Sizes: Optimized for car and motorcycle tyres, addressing specific packaging needs.
Versatile Packaging Options: Compatible with materials like stretch film, PE, LDPE, paper, and logo tape.
Rotating Ring with Auto Reset: Includes automatic and semi-automatic modes, with soft start/stop functionality.
Adjustable Wrapping Overlap: Allows overlap rates between 10% and 90%, controlled via inverters.

Special Features

Efficient Wrapping Mechanism

Provides uniform and secure wrapping for coils of various sizes, ensuring optimal protection during storage and transportation.

Adjustable Tension Control

Allows precise adjustment of wrapping tension to accommodate different materials and prevent damage to coils.

High-Speed Operation

Processes multiple coils rapidly, increasing throughput and minimizing downtime in large-scale production environments.

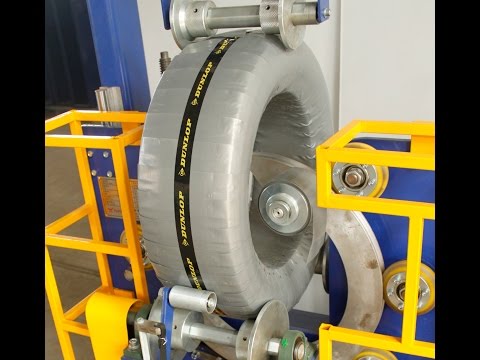

Related video

The FPT-100 Tyre Packing Machine provides efficient, reliable tire packaging for safe transport and storage. With a compact design and easy operation, it enhances packaging speed and minimizes material waste. Built for durability, the FPT-100 is ideal for industrial settings requiring high-performance packaging solutions.

A top-side loading design: This can make it easier for operators to load the tyres onto the machine and can be useful for handling smaller tyre sizes.

A focus on packing car and motorcycle tyres: This can be important for ensuring that the machine is well-suited to handling the specific needs of these tyre sizes.

An optional onboard program control system with a touch screen interface: This can provide clear instructions and can make the machine easier to operate.

Complete technical documentation, videos, and images: This can help with maintenance and can improve the normal running time of the machine.

Features:

The use of different packing materials in the wrapper.

The inclusion of a rotating ring that can reset to its initial position and has automatic and semiautomatic modes.

Inverters for speed adjustment and soft start and stop capabilities.

The ability to change the wrapping overlap from 10% to 90% using inverters for speed control.

The ability to adjust the machine for different tyre sizes and shapes.

Safety features such as guardrails and covers for moving parts.

Adjustment mechanisms for the tension of the packaging material, such as special markers on the film roller.

A touch screen with error messages for troubleshooting.

The ability to use various types of packaging materials such as stretch film, PE, LDPE, and paper.

The option to apply a logo tape to the tyre as it is being wrapped.

Tyre Wrapping Machine Parameters

Parameter	Specification
Model	FPT-200
Voltage (V/Hz)	AC 380/50 (or your requirement)
Power (KW)	1.5
Tyre ID (mm)	300-700
Tyre OD (mm)	510-800
Tyre width (mm)	40-250
Tyre Weight (Kg)	10-30
Packing material	PE/Stretch film/Knit belt/PP/Silver paper
Ring speed (r/min)	0-120
Wrapping speed	18-30 sec/pcs
Overlapping rate	10-80%
